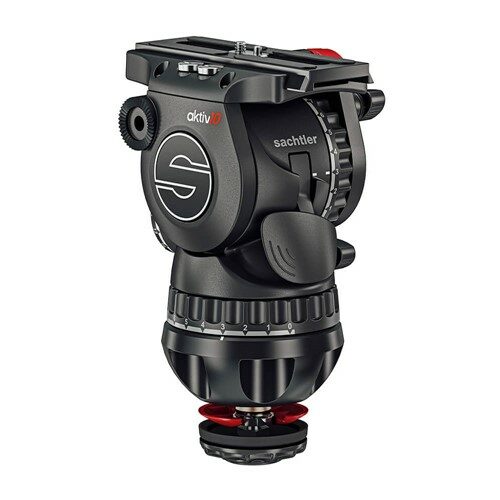

This Sachtler aktiv™ 100 mm fluid head for payloads of up to 12 kg (26.5 lbs.), with unique SpeedLevel™ technology, can be levelled in seconds giving you time to get the perfect shot in documentary, corporate or news applications. The SpeedSwap™ system delivers the fastest way to switch between tripod and slider in seconds giving you ultimate flexibility.

Product Highlights

  • Level and lock your head in an instant without missing a second of action
    Unique SpeedLevel technology.
  • Visible from any height or angle – day or night.
    Innovative PrismBubble.
  • Capture extreme low angle shots right down to the ground.
    Innovative streamlined mounting system.
  • Switch between tripod and slider in seconds.
    Revolutionary SpeedSwap system.
  • Create moving stories, whatever the weather.
    Performance tested to the extreme.

Overview

Tripod Compatibility

aktiv10 fluid head is fully compatible with Sachtler flowtech100, ENG 2 CF, ENG 2 CF HD, Speedlock CF, Speedlock CF HD and ENG 2D tripods.​


Installation Guide

What version of aktiv bowl connector do you have?

 width=
Version 1

V1 install guide

 width=
Version 2

V2 install guide

Technical Specifications

Rangeaktivaktiv
Payload0 kg to 12 kg0 lb to 26.5 lb
Counterbalance15 + 0 steps15 + 0 steps
Drag7 + 0 drag settings7 + 0 drag settings
Weight2.9 kg6.4 lb
Bowl Size100 mm100 mm
Pan Bar Count11
Sliding Range12 cm4.7 in
Tilt Range90° to -70°90° to -70°
Temperature Range-40 °C to 60 °C-40 °F to 140 °F
Camera PlateSideload plate SSideload plate S
Pan Bar Length43 cm16.9 in
Pan Bar TypePan bar DV 75Pan bar DV 75
Pan Bar Attachment16/-/28 mm16/-/28 mm
Level BubbleYes, illuminatedYes, illuminated
Battery TypeCR2032CR2032

Diagrams

In The Box

  • aktiv10 fluid head with one pan bar DV 75 and one camera plate Sideload plate S
