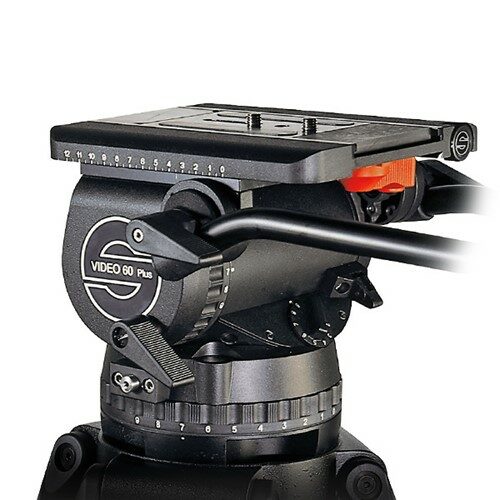

Being able to handle heavier payloads shouldn’t come at the expense of ergonomic, durable safe designs that can perform well in any conditions. The Sachtler Video 60 Plus EFP Fluid Head’s 18-step counterbalance system always works to protect you from inadvertent tipping while keeping the camera secure in any position. Weighing 8.4 kg with a 150 mm center of gravity height, it can easily support payloads of up to 65 kg.
As well as ensuring that you are always operating safely, the Sachtler Video 60 Plus EFP helps you get the best shots possible in any conditions. Touch & Go quick release and automatic locking make setting up fast, while Sachtler’s frictionless fluid damping with nine levels of drag ensures both horizontal and vertical tilts and pans are jerk and vibration free.
Technical Specifications
Range | Video Video |
Payload | 16 kg to 65 kg 35.3 lb to 143.3 lb |
Counterbalance | 18 steps 18 steps |
Drag | 9 + 0 drag settings 9 + 0 drag settings |
Weight | 9.5 kg 20.9 lb |
Pan Bar Length | 35 cm to 52 cm 13.8 in to 20.5 in |
Pan Bar Type | Pan bar Plus Pan bar Plus |
Pan Bar Attachment | 18/22/32 mm 18/22/32 mm |
Pan Bar Count | 2, telescopic 2, telescopic |
Level Bubble | Yes, illuminated Yes, illuminated |
Battery Type | 3 x 625U or LR9 3 x 625U or LR9 |
Bowl Size | 150 mm 150 mm |
Camera Plate | Touch & Go plate 35 Touch & Go plate 35 |
Temperature Range | -40 °C to 60 °C -40 °F to 140 °F |
Tilt Range | +90° to -60° +90° to -60° |
Sliding Range | 11.5 cm 4.5 in |
Data Sheets
In The Box
- Video 60 Plus EFP with two pan bars Plus and one camera plate Touch & Go 35
- Pan bar Plus right (telescopic) (3270)
- Pan bar Plus left (telescopic) (3271)
- Touch & Go Plate 35 (3051)
Downloads
- Video 60 Plus EFP - ManualDownload
- EU - Declaration of Conformity For 6000 - ITDownload
- UK - Declaration of Conformity For 6000 - ENDownload
- EU - Declaration of Conformity For 6000 - DEDownload
- EU - Declaration of Conformity For 6000 - ENDownload
- EU - Declaration of Conformity For 6000 - ESDownload
- EU - Declaration of Conformity For 6000 - FRDownload
