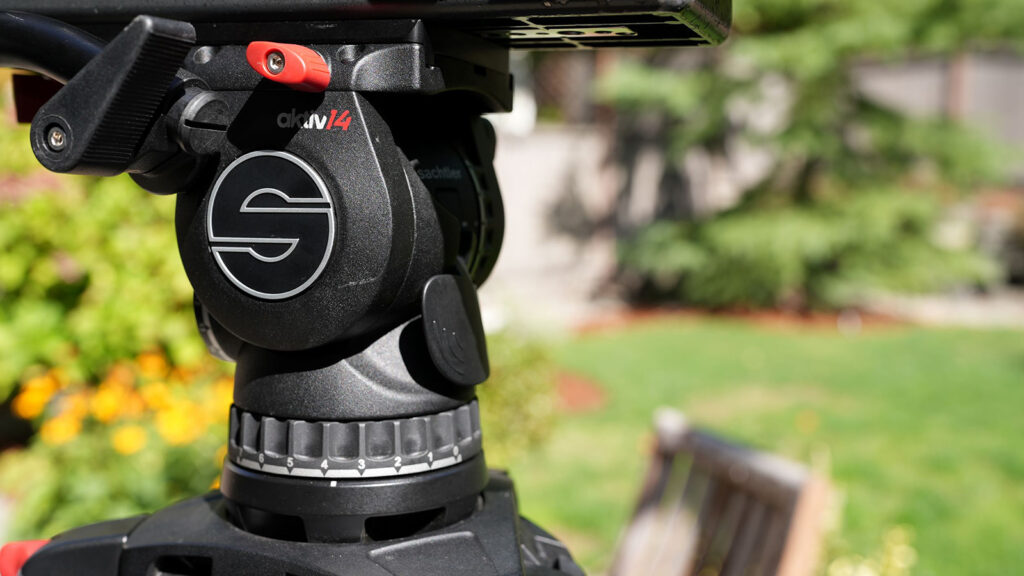

This Sachtler aktiv™ 100 mm fluid head for payloads of up to 16 kg (35.3 lbs.), with unique SpeedLevel™ technology, can be levelled in seconds giving you time to get the perfect shot in documentary, corporate or news applications. The SpeedSwap™ system delivers the fastest way to switch between tripod and slider in seconds giving you ultimate flexibility.

Product Highlights

  • Level and lock your head in an instant without missing a second of action
    Unique SpeedLevel technology.
  • Visible from any height or angle – day or night.
    Innovative PrismBubble.
  • Capture extreme low angle shots right down to the ground.
    Innovative streamlined mounting system.
  • Switch between tripod and slider in seconds.
    Revolutionary SpeedSwap system.
  • Create moving stories, whatever the weather.
    Performance tested to the extreme.
Case Studies

Never miss the shot

Get to the location quick, level up your tripod and grab the moment.
Read More

Technical Specifications

Rangeaktivaktiv
Payload0 kg to 16 kg0 lb to 35.27 lb
Drag7 + 0 drag settings7 + 0 drag settings
Counterbalance15 + 0 steps15 + 0 steps
Bowl Size100 mm100 mm
Camera PlateTouch & Go plate 16Touch & Go plate 16
Sliding Range70 mm2.76 in
Weight3.4 kg7.5 lb
Tilt Range90° to -70°90° to -70°
Pan Bar TypePan bar DV right (telescopic)Pan bar DV right (telescopic)
Pan Bar Count1, telescopic1, telescopic
Pan Bar Length35 cm to 52 cm13.78 in to 20.47 in
Pan Bar Attachment⌀ 18/22/32 mm⌀ 18/22/32 mm
Level BubbleYes, illuminated PrismBubbleYes, illuminated PrismBubble
Battery TypeCR2032CR2032
Temperature Range-40°C to 60°C-40 °F to 140 °F

Diagrams

In The Box

  • aktiv™14T fluid head with one telescopic pan bar DV and Touch & Go plate 16

Downloads
