For professional studio and outside broadcasting work, having lightweight, stable gear that you can rely on is a must. The Sachtler Video 90 FB boasts supports a payload of 115kg and its ergonomic, durable and squeeze-proof design provides safe and secure operation in any position.
These well-known Sachtler features include 24-step dynamic counterbalancing, which compensates for torque as the camera tilts; frictionless fluid damping with seven levels of drag and vertical and horizontal brakes for completely smooth movement; and a sliding balance plate with a connection thread for teleprompter mount.
Technical Specifications
Range | Studio Studio |
Payload | 0 kg to 115 kg 0 lb to 253.5 lb |

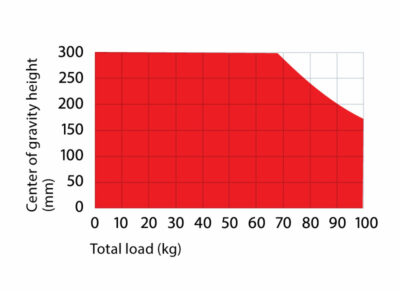

Counterbalance | 24 steps 24 steps |
Drag | 7 + 0 drag settings 7 + 0 drag settings |
Weight | 16 kg 35.3 lb |
Pan Bar Length | 40 cm 15.7 in |
Pan Bar Type | Pan bar front sections Pan bar front sections |
Pan Bar Attachment | 28.5/-/- mm 28.5/-/- mm |
Pan Bar Count | 2 2 |
Level Bubble | Yes Yes |
Adaptor Viewfinder Extension | Included Included |
Bowl Size | Flat base Flat base |
Camera Plate | V-plate V-plate |
Temperature Range | -40 °C to 60 °C -40 °F to 140 °F |
Tilt Range | +60° to -45° +60° to -45° |
Sliding Range | 18 cm 7.1 in |
Data Sheets
In The Box
- Video 90 FB fluid head with two pan bar front sections and camera plate V-plate
- Standard Wedge Plate (3053-3)
- Camera mounting wedge plate (3053-3)
- Pan bar front section (3171)
