Comfortable with payloads up to 35 kg, the Sachtler Video 25 Plus is a remarkably lightweight studio and outside broadcast fluid head. A seven-step drag system means that you be sure your shots are smooth at all levels of drag. The 18-step counterbalance system lets you concentrate on getting the perfect shot, knowing that your camera is always securely positioned and protected from tipping.
The days of fumbling around with clumsy attachments are over, with Touch & Go quick release and automatic locking for speedy mounting and removal. Sachtler’s frictionless fluid damping with seven levels of drag helps with smooth panning and there’s a sliding balance plate too. Designed to guarantee high performance in any kind of shooting environment, and in any lighting conditions.
Technical Specifications
Range | Video Video |

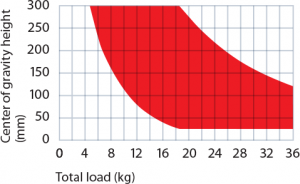

Payload | 8 kg to 35 kg 17.6 lb to 77.2 lb |
Counterbalance | 18 steps 18 steps |
Drag | 7 + 0 drag settings 7 + 0 drag settings |
Weight | 5.7 kg 12.6 lb |
Pan Bar Length | 35 cm to 52 cm 13.8 in to 20.5 in |
Pan Bar Type | Pan bar Plus Pan bar Plus |
Pan Bar Attachment | 18/22/32 mm 18/22/32 mm |
Pan Bar Count | 2, telescopic 2, telescopic |
Level Bubble | Yes, illuminated Yes, illuminated |
Battery Type | 3 x 625U or LR9 3 x 625U or LR9 |
Adaptor Viewfinder Extension | Included Adaptor Included Adaptor |
Bowl Size | 150 mm 150 mm |
Camera Plate | Touch & Go plate 16 Touch & Go plate 16 |
Temperature Range | -40 °C to 60 °C -40 °F to 140 °F |
Tilt Range | +90° to -70° +90° to -70° |
Sliding Range | 12 cm 4.7 in |
Data Sheets
In The Box
- Video 25 fluid head with two pan bars Plus and one camera plate Touch & Go 16
- Pan bar Plus right (telescopic) (3270)
- Pan bar Plus left (telescopic) (3271)
- Touch & Go Plate 16 (1064)
Downloads
- Video 25 Plus - Product ManualDownload
- EU - Declaration of Conformity For 2500P - DEDownload
- EU - Declaration of Conformity For 2500P - ENDownload
- EU - Declaration of Conformity For 2500P - ESDownload
- EU - Declaration of Conformity For 2500P - FRDownload
- EU - Declaration of Conformity For 2500P - ITDownload
- UK - Declaration of Conformity For 2500P - ENDownload
