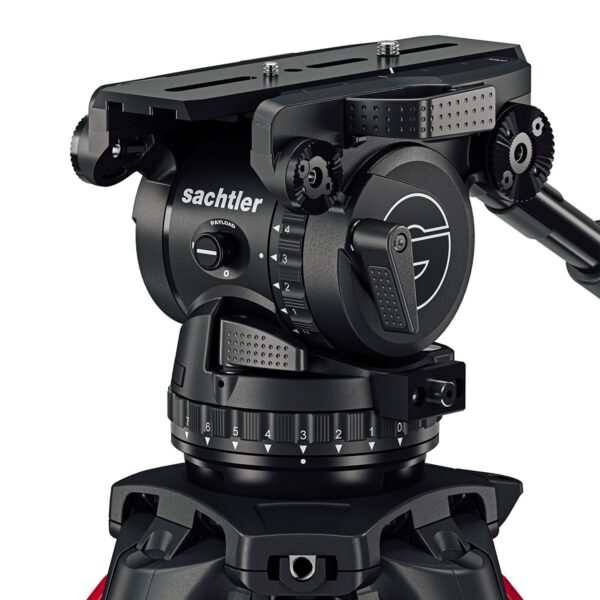

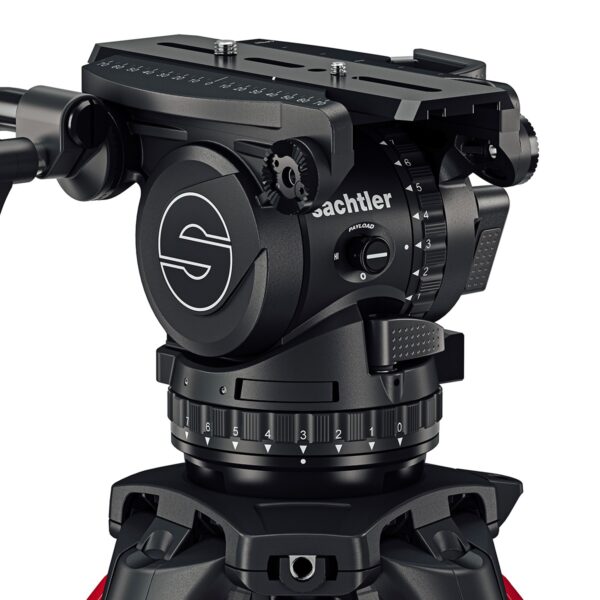

The Sachtler Cine 20 fluid head is perfect for cinematographers working with lighter Cine camera rigs. Featuring a payload range of 2-22 kg (4-48 lb), this head supports both compact and medium-sized Cine cameras, adapting seamlessly to your on-set needs.

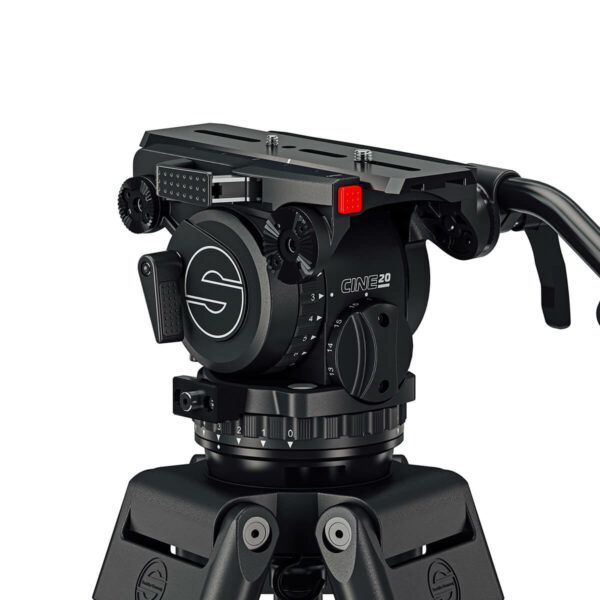

The Sideload platform simplifies the mounting and dismounting of accessorised cameras, while SpeedBalance technology allows for fast balancing of the wide payload range. Seven-step drag settings give the freedom to move creatively or with smooth precision, and a rosette allows the use of a front pan bar to deliver extra control.

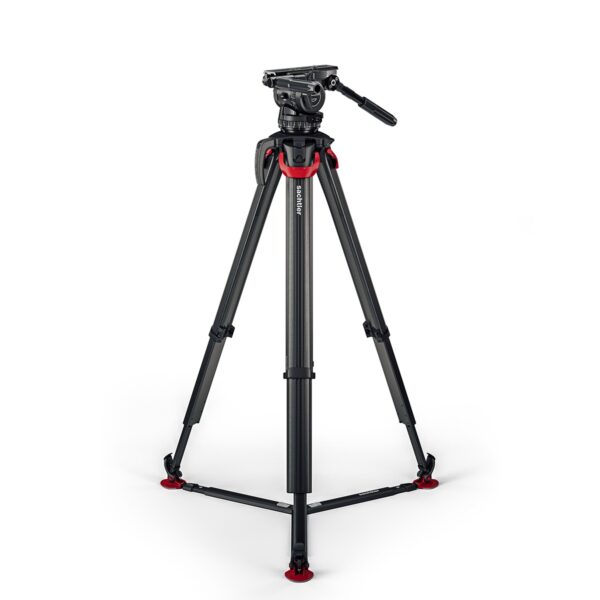

With a 100mm bowl, the compact Cine 20 can be combined with a choice of Sachtler carbon fibre tripods, including the award-winning flowtech100. Elevate your cinematography with precision and agility.
Technical Specifications
| Range | CineCine |
| Bowl Size | 100 mm100 mm |
| Payload | 2 kg to 22 kg4.41 lb to 48.5 lb |
| Counterbalance | 16 steps + Boost Button16 steps + Boost Button |
| Drag | 7 + 0 drag settings7 + 0 drag settings |
| Weight | 4.1 kg9.04 lb |
| Pan Bar Count | 1, telescopic1, telescopic |
| Sliding Range | 15 cm5.91 in |
| Tilt Range | +90° to -80°+90° to -80° |
| Temperature Range | -40 °C to 60 °C-40 °F to 140 °F |
| Level Bubble | Yes, illuminatedYes, illuminated |
| Adaptor Viewfinder Extension | Included AdaptorIncluded Adaptor |

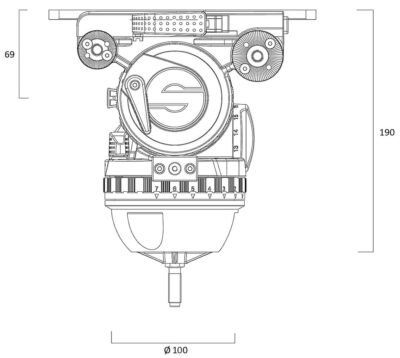

Diagrams
In The Box
Cine 20 fluid head including 1 telescopic pan bar HD, right (3370)
