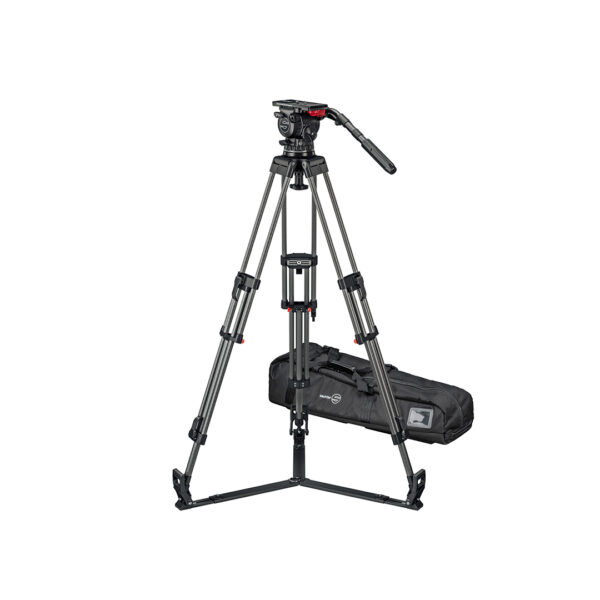

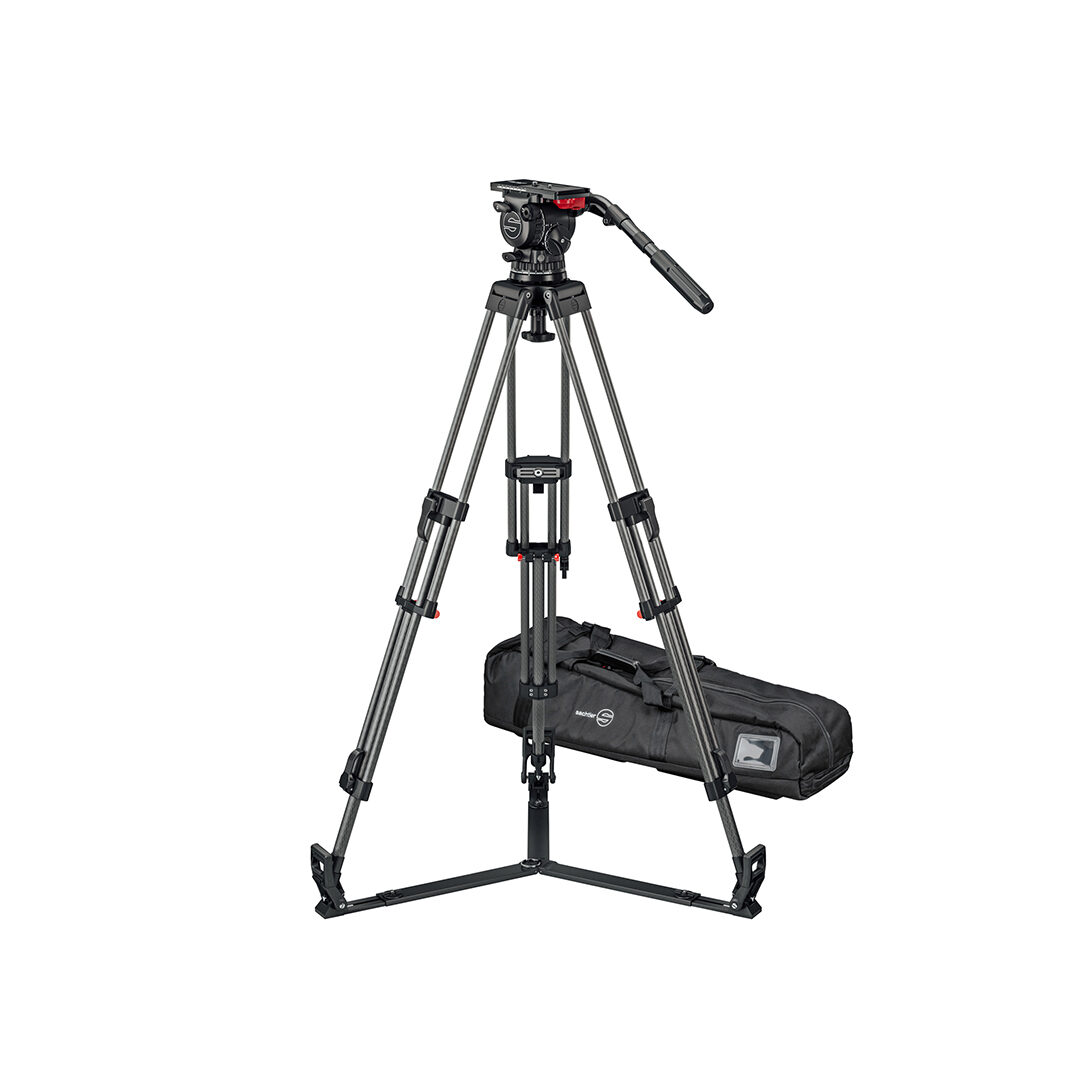

Sachtler FSB 18T Mk II 100 mm Touch&Go system with tripod ENG 2 CF ground spreader for payloads of up to 18 kg (39.7 lb).
Product Highlights
- Supports payloads up to 18 kg (39.7 lbs) with 15 steps of counterbalance
- 7 drag settings for fast fine adjustments
- Smooth operation - Create precision pans with smooth starts and soft stops
- Finely balanced - Delivering smooth pan-tilt fluid actions to match any camera payload from 0kg
- Always on the level – Innovative illuminated PrismBubble visible from any height – day or night
- Built for endurance – Engineered to the highest standards with tough materials and precision components
Overview
Lightweight and easy to transport, this FSB Mk II system with carbon fibre ENG tripod blends classic functionality with modern performance, giving you the stability and control to capture the shot with confidence.
With the power to support payloads up to 18 kg (39.7 lbs) the lightweight FSB 18T Mk II offers 15 steps of counterbalance allowing you to finely match your camera rig and quickly dial in balance time after time. 7 steps of Sachtler drag ensure smooth movement at all speeds and in any environment, while the Touch & Go platform allows one-handed mounting of the camera into a preset position, so you’re always ready to capture the next shot.
FSB Mk II brings the classic features and proven ergonomics of Sachtler to smaller camera setups. With smooth drag and finely tuned counterbalance, it delivers the repeatable performance professionals rely on. The fluid head has a traditional tiedown design, and its illuminated PrismBubble gives fast, all-angle confirmation that your shot is on the level helping you set up quickly and shoot with confidence.
The Sachtler ENG carbon fibre tripod gives you optimal stability and reliable performance in every environment. Lightweight and twist-resistant, the carbon fibre design features a 100 mm bowl with tube diameter of 22 mm. Dual extension legs feature the Sachtler quick clamping system, to securely lock them in position. In this system an adjustable ground spreader and padded carrying bag complete the package.
Tough enough for the field, refined enough for the studio. FSB Mk II is engineered with premium materials and precision components for smooth operation in any environment. This compact and lightweight system is easy to pack and carry – and built to go wherever your work takes you, delivering performance under pressure.
FSB 18T Mk II is compatible with all Sachtler 100 mm tripods.
Technical Specifications
| Range | FSBFSB |
| Payload @ 100mm cog | 0 kg to 18 kg0 lb to 39.68 lb |
| Drag | 7 + 0 drag settings7 + 0 drag settings |
| Counterbalance | 15 + 0 counterbalance steps15 + 0 counterbalance steps |
| Bowl Size | 100 mm100 mm |
| Height | 62 cm to 170 cm24.41 in to 66.93 in |
| Material | Carbon FibreCarbon Fibre |
| Weight | 6.6 kg14.55 lb |
| Transport Length | 89 cm35.04 in |
| Tilt Range | 90° to -70°90° to -70° |
| Sliding Range | 70 mm2.76 in |
| Temperature Range | -40°C to 60°C-40 °F to 140 °F |
| Base | Integrated flat baseIntegrated flat base |
| Camera Fitting | Touch&GoTouch&Go |
| Level Bubble | Yes, illuminated PrismBubbleYes, illuminated PrismBubble |
| Extension | 2x2x |

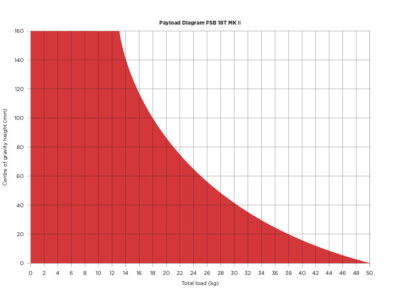

Diagrams
In The Box
FSB 18T Mk II fluid head (#S2089-0002) with telescopic pan bar DV (#3470) and Touch&Go plate 16 (#1064); tripod ENG 2 CF (#5386) with ground spreader (#7002) ; padded bag ENG (#9104)
